Collins Aerospace is applying decades of experience as a leader in composite aerostructures and nacelles to design and produce passenger and cargo doors for the next generation of aircraft. Our innovative approach utilizing both advanced thermoset and thermoplastic materials reduces part count and assembly complexity, resulting in better cost and weight savings compared to the current in-service thermoset composite doors.
Composite structure
Our resin pressurized molding technique enables the design and production of so-called "one-shot" composite aircraft doors that dramatically reduces the number of detailed parts and fasteners used to assemble them.
Mechanism
Our door experts can ensure simpler, lower cost designs that are easier to operate compared to current aircraft doors.
Composite structure
- Up to 20% lighter than current wide body passenger doors
- Up to 85% part count reduction
- Up to 80% fastener count reduction
- Up to 20% lower cost than current wide body passenger doors
- One-shot out of autoclave primary structure
- Thermoplastic structural secondary elements
Mechanism
- 10% lighter than current wide body passenger door mechanisms
- 10% lower cost than current wide body passenger doors
- Lower operating force and smooth operation
Emergency Power Assist System (EPAS)
- Simplified architecture
- Improved reliability
- Optimized pressurization source
Slide
- 20% decrease in slide pack system volume
- 20% decrease in slide pack system weight
- Incorporation of slide pack system health and readiness monitoring through SMART device application
Sensors and controls
- Door position detection and indication
- Door flight lock and EPAS control
- Electronic unit can be integrated with the passenger door subsystem and aircraft
Enhanced vision
- Enhanced situational awareness for (seated or standing) cabin crew
- Wider viewing angles than traditional windows
- View of key ground areas during surface operations
- High resolution images
- Ability to monitor engine inlets and wing leading edges
- Ability to view remotely from any area of the aircraft
- Recordable video
Collins Aerospace has the ability to offer customers a one-stop procurement destination for composite aircraft doors. We can leverage four historic businesses to support six unique aspects of aircraft door systems. Our knowledge and experience with each of the door subsystems allows us to deliver significant cost and weight savings over the life of the aircraft.

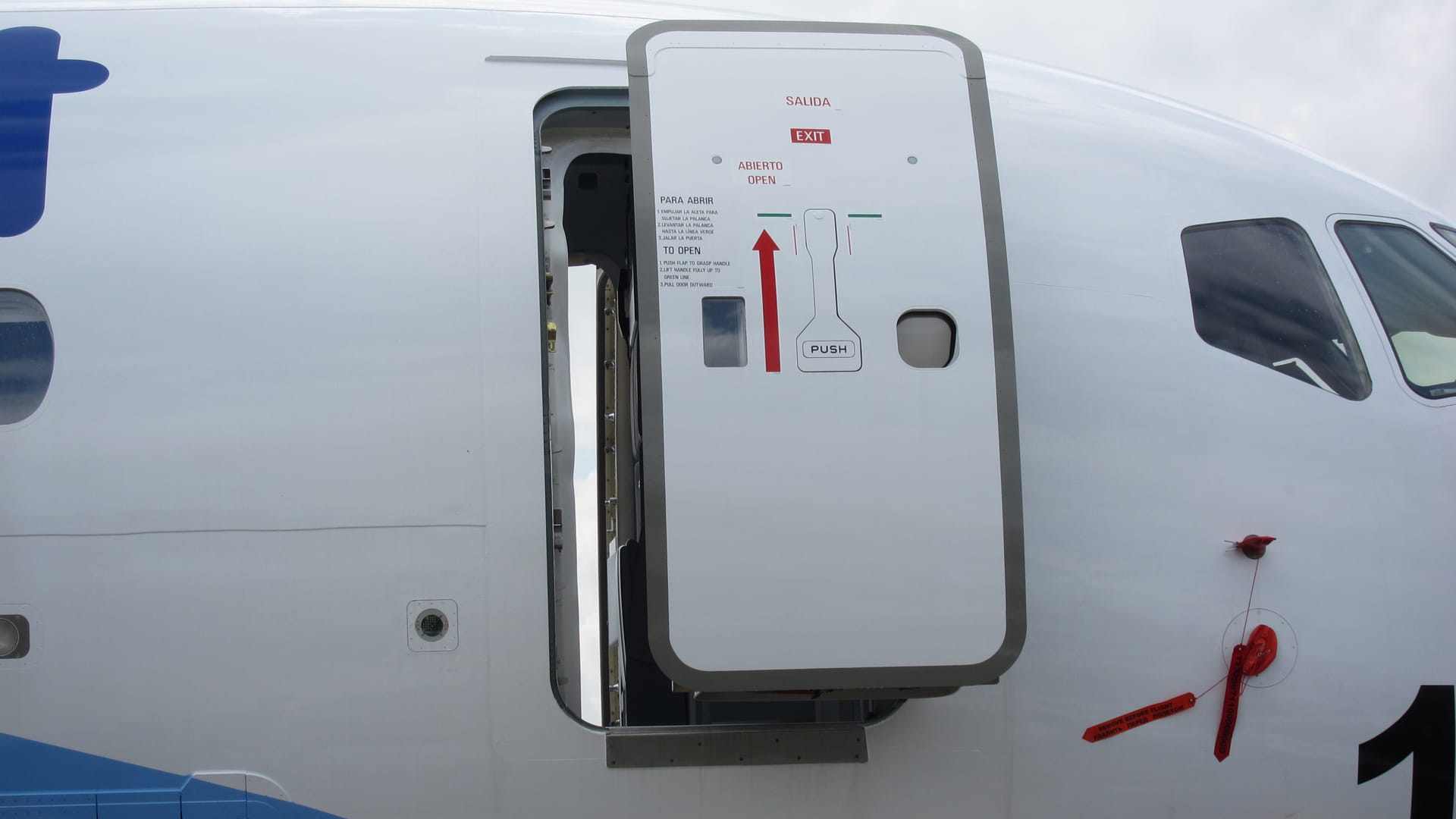

- The image Sukhoi Superjet 100 at Paris Air Show 2013 (1).jpg by Olivier Cleynen is licensed under CC BY-SA 3.0.
