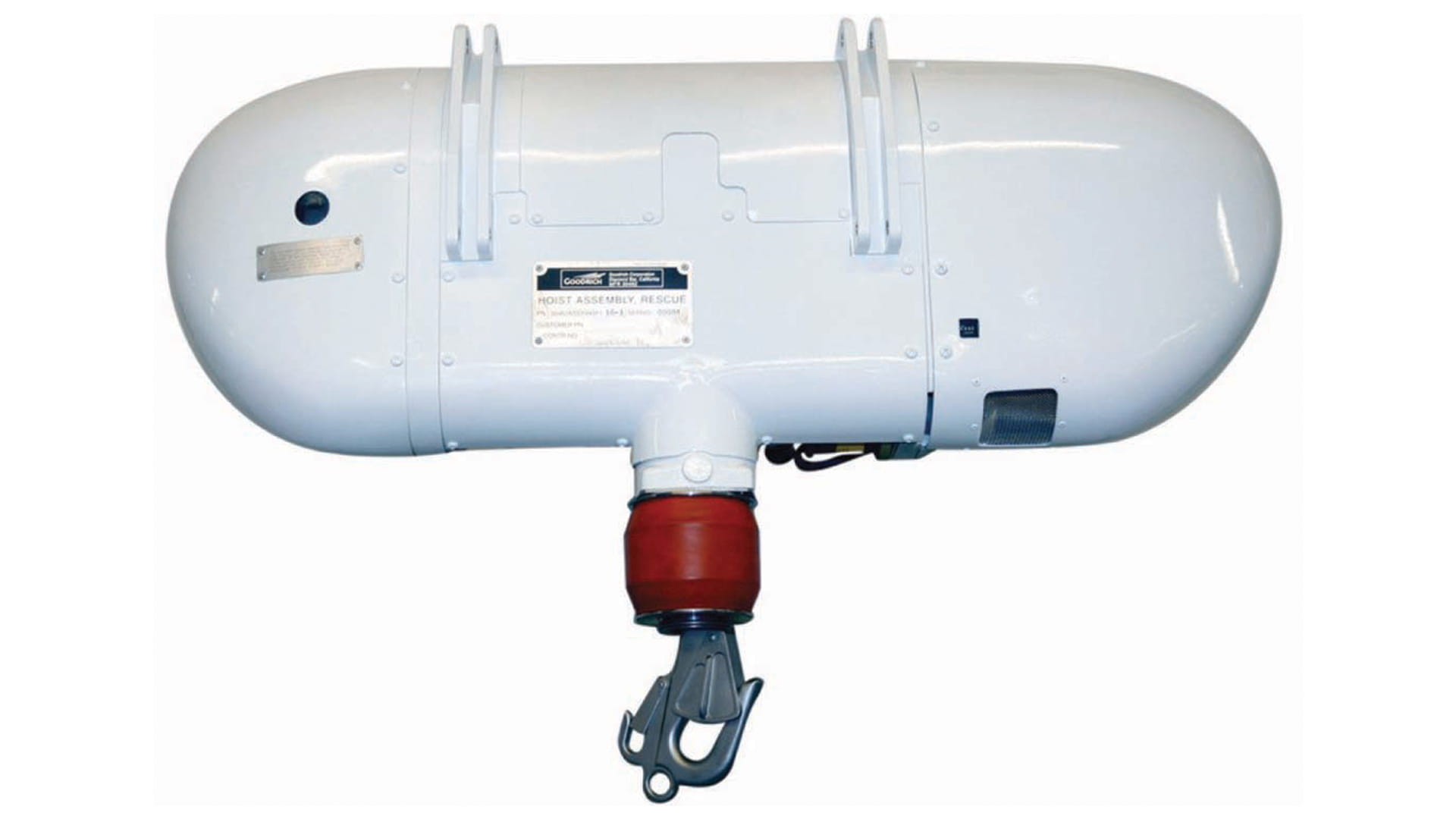

Rescue Hoist Model 44311

Externally mounted, AC electrically powered rescue hoist Model 44311 uses the Collins Aerospace proprietary translating drum cable management system. The hoist design also incorporates a Weston style load brake and overload slip clutch for added safety.

Cable lubrication extends cable life and helps arrest corrosion.

Features & benefits

Capable of high fleet angle allowing hoist operation in high winds or other circumstances requiring an off angle lift
Symmetrical braking reducing dwell time on direction reversals and enhanced braking capability
Cable foul onset sensing
Continuous duty cycle allows for multiple victim rescues without a cool down period
Single point payout reduces potential for hoist-induced load swings using translating drum technology
Worldwide field engineering services available

Design features

Designed to exceed the U.S. Army’s strict EMI requirements defined in ADS-37A
Hour meter logs total operation time
Emergency cable cut
Down limit override for quick cable changes
Redundant limit and decel switches
Night vision compatible controls
Cable length display on operator’s pendant
Searchlight or hover control pendant
Intercom switch on pendant
Priority hoist controls for pilot
Integral 4 point and post mount in same hoist model

Translating drum technology

Fixed cable payout point
Reduced chance of load spinning
Significantly reduced loads on the level-wind
Allows for the use of larger diameter rollers at the cable payout point for improved fleet able capability and cable life
Tighter fairing fits for reduced FOD & environmental ingress into the hoist system
A consistent cable location relative to the aircraft, winch operator and doorway
